JBF products classifications DIN 66399 - ISO/IEC 21964

DIN 66399 - ISO/IEC 21964

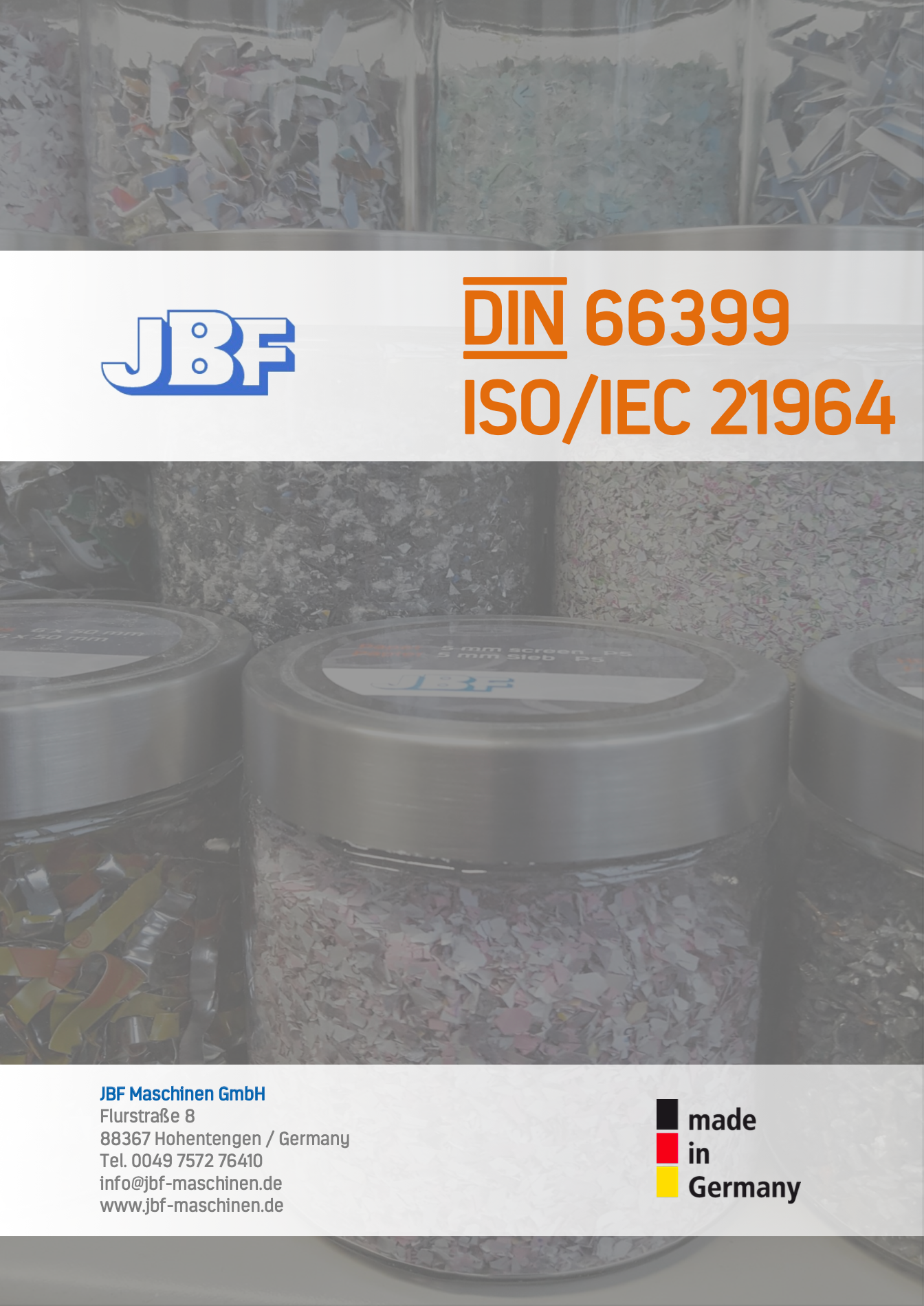

Brochure DIN 66399 - ISO/IEC 21964

  • Protection classes 1 to 3

    Protection class 1 - normal protective require- ments for internal data.

    Protection class 2 - High protective requirements for confidential data

    Protection class 3 - Very high protective requirements for confidential and secret data

  • Security levels 1 to 7

    1: Recommended e.g. B. for data carriers with general data that should be made unreadable. This security level is not suitable for personal data.

    2: Recommended e.g. B. for data carriers with internal data that should be made unreadable. This security level is not suitable for personal data.

    3: Recommended e.g. B. for data carriers with sensitive and confidential data

    4: Recommended e.g. B. for data carriers with particularly sensitive and confidential data

    5: Recommended e.g. B. for data carriers with data to be kept secret

    6: Recommended e.g. B. for data carriers with data to be kept secret, if exceptionally high security precautions are to be observed.

    7: Recommended for data carriers with data to be kept strictly secret, if the highest security precautions are to be observed.

  • Material classes PAW

    P: Information representation in original size (paper, film, printing forms, radiographs,..)

    F: Information representation reduced (microfilm, microfiche, foil, ...)

    O: Information representation on optical memory media (CD, DVD, Blu-Ray-Disc,...

    T: Information representation on magnetic memory media (floppy discs, ID- or smart cards magnetic cassettes,....)

    H: Information representation on HDD ́s with magnetic memory media (hard disks)

    E: Information representation on electronic memory media (Flash- or SSD-drives, thumb

    drives, chip cards, mobile communication media, ...)

We recommend our brochure on the left to determine the required protection class, security level and material class as well as to define the destruction process and other infrastructure. We would be happy to advise you. The tables on this page provide a quick overview of what we have to offer.

  JBF products classifications DIN 66399/ISO/IEC 21964

Shredders for HDD's and Digital Memory Media

material class P F O T H E
model mm
JBF HD 15/40 18.5 - - 1 2 4 2
JBF HD 15/40 Office 18.5 - - 1 2 4 2
JBF HD 15/40 DUO 18.5 - - 1 2 4 2
JBF HD 20/40 18.5 - - 1 2 4 2
JBF HD 18/54 20.0 - - - 1 4 2
JBF HD 38/50 and JBF HD 35/50 FLASH 30.0 - - - 1 4 2
JBF HD 38/50 and JBF HD 35/50 FLASH + screen Ø 14 - - 3 3 5 2
JBF HD 38/50 and JBF HD 35/50 FLASH + screen Ø 12 - - 4 4 5 3
JBF HD 38/50 and JBF HD 35/50 FLASH + screen Ø 3.5 - - 5 6 6 5
JBF HD 38/50 and JBF HD 35/50 FLASH + screen Ø 3 - - 6 6 7 5
JBF HD 38/54 30.0 - - - 1 3 2
JBF HD 54/60 40.0 - - - 1 3 2
JBF HD 70/74 40.0 - - - 1 3 2
JBF 16/35 FLASH and JBF 38/50 FLASH 5.8 - - - 4 - 3
JBF 16/35 FLASH and JBF 38/50 FLASH + screen Ø 5 - - 4 5 - 4
JBF 16/35 FLASH and JBF 38/50 FLASH + screen Ø 4 - - 5 6 - 5
JBF 16/35 FLASH and JBF 38/50 FLASH + screen Ø 3.5 - - 5 6 - 5
JBF 16/35 FLASH and JBF 38/50 FLASH + screen Ø 3 - - 6 6 - 5

Explanations to DIN 66399 ISO/IEC 21964, issue 2023 02.

Subject to change without notice. Errors and omissions expected.

Shredders for Common Applications

material class P F O T H E
model mm
JBF 12/35 15.0 - - 1 2 - 2
JBF 16/35 15.0 - - 1 2 - 2
JBF 20/35 20.0 - - - 1 - 2
JBF 28/35 20.0 - - - 1 - 2
JBF 35/35 20.0 - - - 1 - 2
JBF 20/40 20.0 - - - 1 - 2
JBF 35/40 20.0 - - - 1 - 2
JBF 38/50 30.0 - - - 1 - 2
JBF 48/50 30.0 - - - 1 - 2
JBF 54/60 40.0 - - - 1 - 2
JBF 60/60 40.0 - - - 1 - 2
JBF 100/60 40.0 - - - 1 - 2
JBF 159/60 40.0 - - - 1 - 2
JBF 70/68 40.0 - - - 1 - 2
JBF 85/68 60.0 - - - 1 - 2
JBF 100/86 40.0 - - - 1 - 2
JBF 100/90 60.0 - - - 1 - 2
JBF 120/90 60.0 - - - 1 - 2
JBF 150/120 100.0 - - - 1 - 2
JBF 220/120 100.0 - - - 1 - 2

Explanations to DIN 66399 ISO/IEC 21964, issue 2023 02

Subject to change without notice. Errors and omissions expected.

Shredder for Paper and Documents

material class P F O T H E
model mm
JBF 38/54 30.0 - - - 1 - 2
JBF 48/54 30.0 - - - 1 - 2
JBF 63/54 30.0 - - - 1 - 2
JBF 100/54 30.0 - - - 1 - 2
JBF 54/60 30.0 - - - 1 - 2
JBF 70/74 30.0 - - - 1 - 2
JBF 70/74 40.0 - - - 1 - 2
JBF DC 36/35 6x50 3 - 3 3 - 2
JBF DC 42/35 6x50 3 - 3 3 - 2
JBF DC 50/40 3.8x40 4 1 4 4 - 3
JBF DC 50/40 6x50 3 - 3 3 - 2
JBF DC 50/40 7.8x55 2 - 2 2 - 2
JBF DC 50/40 11.8x55 2 - 2 2 - 2
JBF DC 600 + JBF DCM 600 6x50 3 - 3 3 - 2
JBF DC 600 + JBF DCM 600 11.8x55 2 - 2 2 - 2
JBF DC 800 + JBF DCM 800 6x50 3 - 3 3 - 2
JBF DC 800 + JBF DCM 800 11.8x55 2 - 2 2 - 2
JBF CD 1000 + JBF DCM 1000 6x50 3 - 3 3 - 2
JBF DC 1000 + JBF DCM 1000 11.8x55 2 - 2 2 - 2
JBF DC 2000 11.8x55 2 - 2 2 - 2
JBF DCM 2000 11.8x55 2 - 2 2 - 2
JBF DC 2500 + JBF DCM 2500 11.8x55 2 - 2 2 - 2
JBF DC 50/55 11.8x55 2 - 2 2 - 2
JBF DC 88/55 11.8x55 2 - 2 2 - 2

Explanations to DIN 66399 ISO/IEC 21964, issue 2023 02

Subject to change without notice. Errors and omissions expected.

Disintegrators

material class P F O T H E
All types mm
+ screen Ø 20.0 3 - 2 3 - 2
+ screen Ø 12.0 4 1 3 4 - 3
+ screen Ø 9.0 4 1 3 4 - 3
+ screen Ø 6.0 4 1 3 4 - 3
+ screen Ø 5.0 5 2 4 5 - 4
+ screen Ø 4.0 6 3 5 6 - 5
+ screen Ø 3.5 7 3 6 6 - 5
+ screen Ø 2.15 7 4 6 7 -

Explanations to DIN 66399 ISO/IEC 21964, issue 2023 02

Subject to change without notice. Errors and omissions expected.
